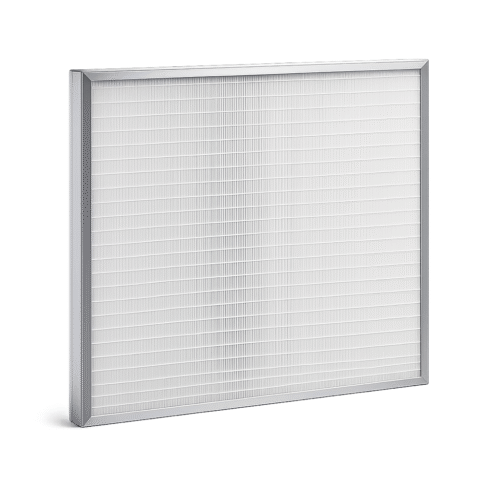

Energy-Efficient V-Bank Fine Filter
Generic name for page copy & search — model above is title / SKU
Energy-efficient mini-pleat V-bank fine filter (EN 779 F7–F9 / ISO ePM1) balancing efficiency and fan energy.
MVEE offers a strong efficiency-to-energy balance for everyday HVAC final filtration.
Key Benefits
| Application | HVAC; Commercial buildings |
| Classification (ISO 16890) | ISO ePM1 |
| Classification (EN 779) | F7 – F8 – F9 |
| Filter Frame | Polystyrene |
| Media | Microglass Fibre |
| Max. Operating Temperature (°C) | up to 80 °C |
| Max. Final Pressure Drop | 450 Pa |
| Max. Airflow | 1.25 × nominal flow (size dependent) |
| Dimension Standard | Standard modular front sizes — EN 15805 (e.g. 287 / 490 / 592 / 610 mm) |
| Installation Options | Front- and side-access housings and holding frames available |
    |
|
